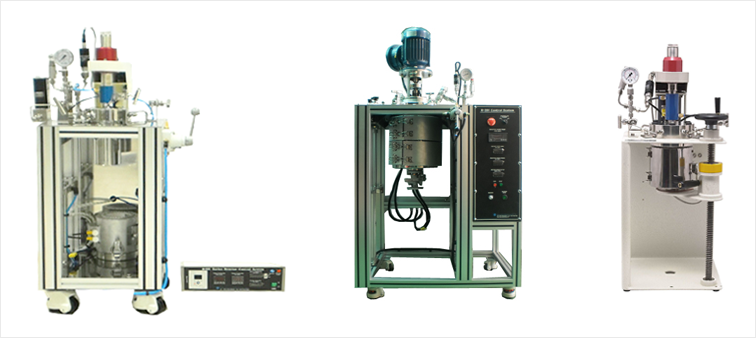

R-201 Series Reactor System


General Specifications
- The vessel of R-201 Series Reactor is metal.
- General Max. Pressure : 414 Bar (6000 psig)
- General Max. Temperature : 500℃
- General Capacity: 100ml~500L
- R-201 & 211 Series Reactors are designed to select between the metal vessel & glass vessel.
  And these are designed to move vessel by pressure cylinder easily.
Order Guide
Series Volum ID Conn.Size Stand Heater Max.
Pressue		 Magnetic
Drive		 Motor General Common Port
201-1 100mL 50mm 1/8"NPT Bench 0.5Kw 6000psig 16in-lbs 60W Gas Inlet & Valve, Vent Valve
Sample tube & Valve
Process(MD), Drain
Cooling Inlet & Outlet
Thermowell & Thercouple
Spare Nozzie
201-2 300mL 55mm 1/8"NPT Bench 1.0Kw 6000psig 16in-lbs 1/12Hp
201-3 500mL 65mm 1/8"NPT Bench 1.0Kw 6000psig 16in-lbs 1/8Hp
201-4 1L 94mm 1/8"NPT Bench 1.5Kw 6000psig 16in-lbs 1/4Hp
201-5 2L 107mm 1/8"NPT Bench 2.5Kw 6000psig 16in-lbs 1/4Hp
201-6 5L 145mm 3/8"NPT Floor 3.5Kw 6000psig 32in-lbs 1/3Hp
201-7 10L 210mm 3/8"NPT Floor 8.0Kw 6000psig 64in-lbs 3/4Hp
201-8 Other
Please contact to us for other temperature, pressure and capacity besides above standard specification.

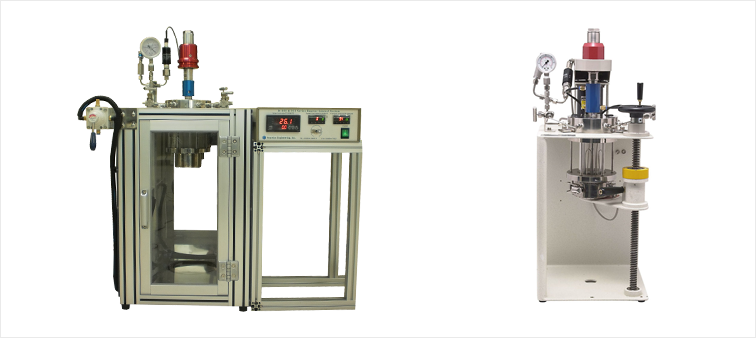

R-211 Series Glass Reactor System


General Specifications
- The vessel of R-211 Series Glass Reactor is glass.
- General Max. Pressure : 14 Bar (220 psig)
- General Max. Temperature : -30~250℃
- Capacity: 100ml~100L
- R-201 & 211 Series Reactors are designed to select between the metal vessel & glass vessel.
  And these are designed to move vessel by pressure cylinder easily.
Order Guide
Series Volum ID Conn.Size Staand Heater Max.
Pressue		 Msg.Drive Motor General Common Port
211-1 300mL 55mm 1/8"NPT Bench 1.0Kw 220psig 16in-lbs 1/12Hp Gas Inlet & Valve,
Vent Valve
Sample tube & Valve
Process(MD), Drain
Cooling Inlet & Outlet
Thermowell & Thercouple
Spare Nozzie
Mag. Drice:Water Inlet&Outlet
Jacket Design:150psig Power:220V/60hz/1phase
211-2 500mL 65mm 1/8"NPT Bench 1.0Kw 220psig 16in-lbs 1/8Hp
211-3 1L 86mm 1/4"NPT Bench 1.5Kw 220psig 16in-lbs 1/4Hp
211-4 2L 107mm 1/4"NPT Bench 2.5Kw 150psig 16in-lbs 1/4Hp
211-5 5L 140mm 3/8"NPT Floor 3.5Kw 100psig 32in-lbs 1/2Hp
211-6 8L 160mm 3/8"NPT Floor 7.5Kw 100psig 64in-lbs 1/2Hp
211-7 10L 210mm 3/8"NPT Floor 8.0Kw 50psig 64in-lbs 3/4Hp
211-8 Other
Please contact to us for other temperature, pressure and capacity besides above standard specification.
