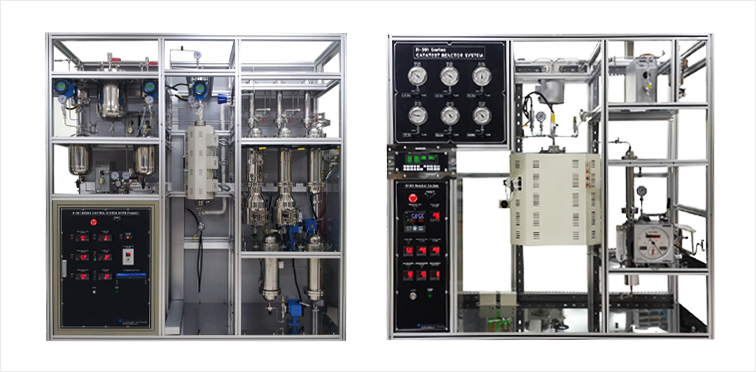

R-301 Series Catatest Reactor System


Use of catatest

- Determinations of different variables for researching on Catalyst improvement, such as; Reacting Temperature, Pressure and Feed Flow, reaction temperature, Pressure, Feed flow, reaction kinetics, etc
- Test of Catalyst on Hydrogen reaction
- Catalyst Screen, Selectivity & Activity Test
- Test of Catalyst Life Span

General Specification

- Catalyst volume (5mL~2L) : 316SS & Hastelloy C276
- Reactor Design Pressure : 1,000psig~6,000psig
- Reactor Design Temperature : 800℃
- Operating Temperature : 650℃
- Operating Pressure : 1200psig
- Liquide Flow rang : 20mL/min~100L/min
- Gas flow range:
  ⇒ H2 gas : 50mL/min~3L/min
  ⇒ O2 gas : 50mL/min~3L/min
  ⇒ N2 gas : 50mL/min~500mL/min
  ⇒ Feed&Spare gas : 50mL/min~500mL/min
Order Guide
301 A B C D E F
Series Net Volume Pressure Temp. Power Control System MFC
301 1. 8ml 1. 300psig 1. 300℃ 1. 220/60/1 1. Local Controllers
 1. MFC(1)
  2. 12ml 2. 500psig 2. 400℃ 2. 220/60/3 2. Local Controllers &
R-SCS SW(PC)		 2. MFC(2)
  3. 20ml 3. 1000psig 3. 500℃ 3. 220/50/1 3. DAQ System
(Only PC version)		 3. MFC(3)
  4. 20ml 4. 2000psig 4. 600℃ 4. Other 4. Other 4. MFC(4)
  5. 20ml 5. 3000psig 5. 800℃     5. MFC(5)
  6. 20ml 6. 5000psig 6. 1000℃     6. Other
  7. Other 7. Other 7. Other
Please contact to us for other temperature, pressure and capacity besides above standard specification.
